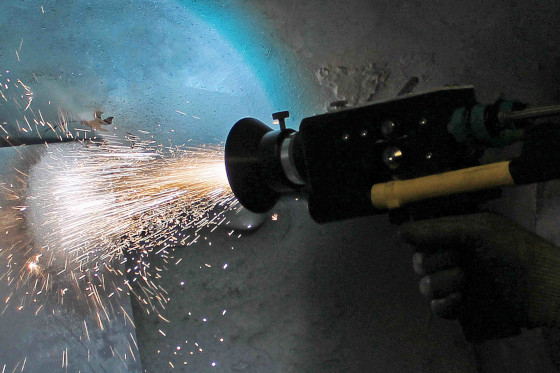

The Metallisation ARC145/345 system is designed for demanding engineering and anti-corrosion applications and is our most flexible arc spray machine. Suited to hand held or robotic mounting, it is as happy spraying 1.6mm engineering wires onto shafts as it is spraying 2.5mm corrosion coatings onto steel fabrications. The system has undergone a rigorous design, engineering and testing program to bring you a high quality, medium capacity but flexible system that will aid you to maximise production, efficiency and productivity in your thermal spray operations.


Arc Spray ARC145/345 - Features

  • 350A spray capacity – suitable for many engineering coating requirements and small corrosion protection jobs.
  • Push/Pull system for a more stable arc ensuring quality coatings with consistent operation.
  • Patented Flexible Drive system (Synchronised) with larger core for added strength under greater duty.
  • 5 to 20 metre supplies packages from the wire to the pistol for spraying accessibility.
  • High powered, sealed / lubed for life inverter drive gear-motor.
  • Air-cooled cables reduce pistol supply weight and operator fatigue and gives good maneuverability.
  • Suitable for Anti-corrosion and engineering wires, steels, copper and bronzes etc.
  • Suitable for 1.6mm, 2.0mm, 2.3mm and 2.5mm wires without changing feed rollers.
  • Easy to maintain, less than 3 minutes to change contact tubes and nozzle, which do not require adjustment.
  • Low running costs as compared with gas systems.
  • Soft start for smooth start ups reducing electrical loading on components
  • Choice of coating textures
  • Wire dispense packaging options allow drive unit to be compactly mounted on the energiser or separately on the floor / wall or site capable trolleys.
  • When wire drive is energiser mounted, the drive unit can rotate through 180º to follow the operator whilst spraying.
  • Power extension trolley with several length options designed to allow the energiser to be sited away from the spray job.
  • 10 metre extension supplies package as standard.  Longer lengths possible for certain applications.  Check with MSSA for more details.


Arc Spray ARC145/345 - Typical Applications

  • Multi-coat system for both Engineering and Anti-Corrosive Coatings including:
  • Reclamation of worn components
  • Restoration of diameter

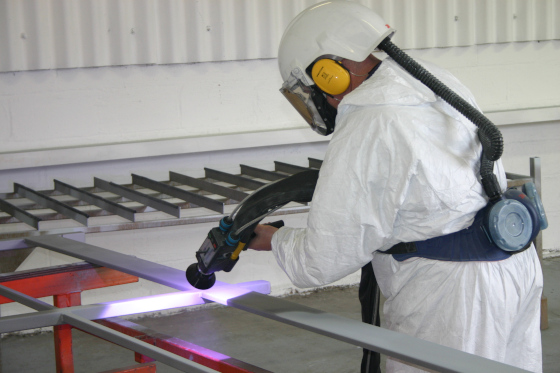

  • Anti-corrosion protection to replace or repair galvanising
  • Anti-corrosion protection using Zinc, or Aluminium, or 85/15 Zinc Aluminium, or AlMg5.


Arc Spray ARC145/345 - Industry Applications

  • Structural Steelwork
  • Offshore Oil & Gas
  • Shipbuilding & Marine
  • Vessels and Enclosures
  • Bridges (Concrete and Steel)
  • Wind Turbine Towers
  • Fences/Gates
  • Engineering Bond Coats
  • Wear Coatings
  • Bearing and Seal Surfaces

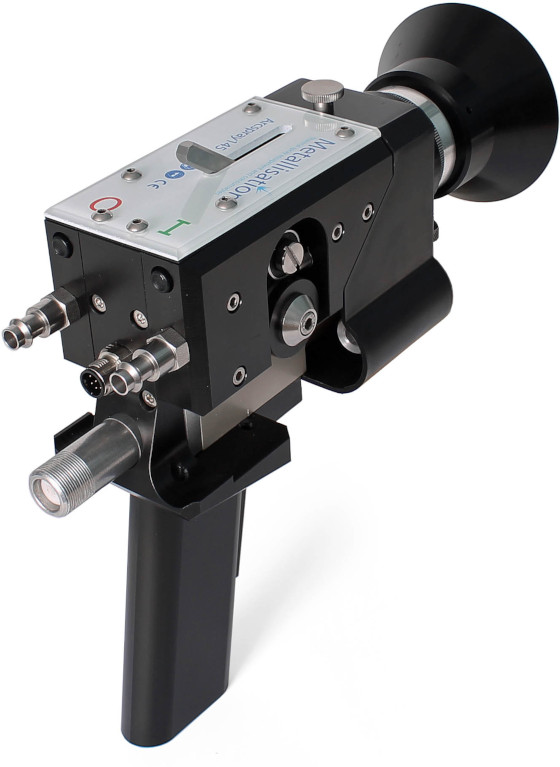

Arc Spray ARC145- Pistol

The ARC145 pistol utilises the latest design of contact tips and air-concentrator. The head design, along with the contact tips improves cooling to the arc area, resulting in longer contact tip life and more reliable operation when spraying for extended periods of time. The improved airflow and more efficient arc also allow the system to produce a finer coating without compromising deposit efficiency. The new tips, manufactured from a hard wearing, copper alloy are quick and easy to change. The new material, along with improved cooling help to enhance tip life considerably and reduce downtime and running costs.

The ARC145 pistol also includes other enhancements such as measuring the spray voltage at the pistol (assisting diagnostics and simplifying setup) and more simple, robust pushbuttons. A small amount of weight is taken out of the pistol compared to the ARC140 and a more robust control cable connection is also introduced. Reversible (twice the life) V-rollers complete the ARC145 pistols new features and ensure the most reliable wire feed possible.

The reversible V-rollers also feature on the new ARC145 wire drive unit which utilises the proven technology from the ARC150 spray systems. A larger motor, inverter and independent tension drive unit gives the very best in reliable and repeatable wire feeding.

The drive unit and pistol are joined with our patented ‘Synchrodrive’ principle. The flexible drive cable in 5m, 10m, and 20m lengths, combined with the V-rollers and more positive drive unit ensure the ultimate performance and reliability of wire feeding.

The ARC145 system has been extensively tested with a range or coating wires and proven to give excellent performance over 20m feed lengths with the most challenging, cored engineering wires.

If you would like more information on our equipment, please call us on 07 3823 1004, or email us using our contact form.
