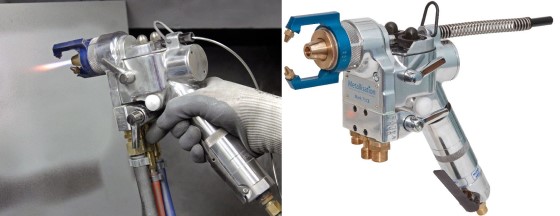

The Metallisation MK73-FS is an oxygen-propane fuelled flamespray system giving un-rivalled anti-corrosion coatings. The pistol can be further enhanced by fitting a deflected spray extension. This unit allows the operator to spray at right angles and get into difficult to access spray areas, such as between pipes or close to brackets.

Being an Australian Distributor for Metallisation Flame Spray Systems, MSSA supply the full range of Metallisation equipment, including spray guns and spare parts.

Flame Spray MK73-FS Features

  • Fastest pistols on the market (up to 50kg/hr for continuous zinc)
  • Stop/start version allows operator to stop spraying and leave the flame lit (e.g., whilst inspecting or moving the work piece)
  • Variety of hose lengths to suit each application
  • Wide range of wire sizes to suit many application and coating requirements
  • Spreader and non-spreader versions to allow detail work or larger areas to be sprayed efficiently
  • New, free standing or wall mounted control panel
  • Safety shut-off valve
  • Optional panel mounted oxygen regulator for long supplies setups
  • Variable wire speed control
  • Suitable for anti-corrosion wires plus some steels, copper and bronzes.
  • Two stage air cap gives optimal setting for lighting and spraying
  • Rugged construction combined with light-weight and balance for ease of handling
  • Hanging hook for temporary storage or connection to spring balance
  • Flow meters for optimal setting of parameters and fault finding
  • Flow meters include large pointers for ease of checking from a distance
  • Air Regulator and Filter (A.R.F.) unit supplies motor air, nozzle air
  • Optional deflected extensions for access to difficult to spray areas
  • Optional Trolley mount with lockable doors, wire and tool storage

Flame Spray MK73-FS Typical Applications

  • Structural steelwork
  • Offshore platforms
  • Marine applications
  • Bridges Fences/gates
  • Street furniture
  • Tanks and vessels


Optional MK73-FS Spreader

The optional air spreader/fan is used to spread the spray stream either vertically or horizontally, see our video demonstration below showing the difference the dramatic spreader makes to the spray steam.

Being an Australian Distributor for Metallisation Flame Spray Systems, MSSA supply the full range of Metallisation equipment, including flame spray spreaders, spray guns and spare parts.

Demonstration of the optional air spreader/fan which can be used to spread the spray stream either vertically or horizontally, used with Flame Spray System.



Flame Spray MK73-FS Flame Spray Spreader Video Demonstration

This video demonstrates the optional air spreader/fan which can be used to spread the spray stream either vertically or horizontally, used with Flame Spray System.

Being an Australian Distributor for Metallisation Flame Spray Systems, MSSA supply the full range of Metallisation equipment, including flame spray spreaders, spray guns and spare parts.

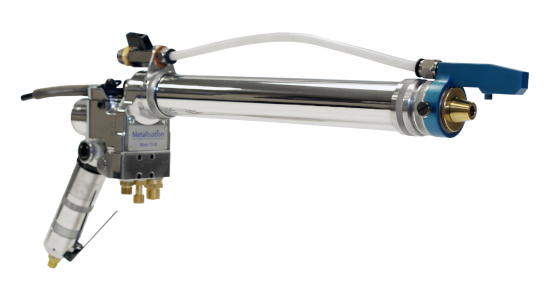

Optional Flame Spray Extension Nozzle

The Flamespray extension nozzle is designed for access to restricted areas as well as for coating cylinder bores.

Extension Nozzle  - Features

  • Fits directly to Metallisation MK73 (oxy-propane) or MK61 (oxy-acetylene) flame spray pistols.
  • Will spray from 0° to 90° deflection
  • For use with 1/8” (3.17mm) or 3/16” (4.76mm) wires
  • Typical access envelope (head diameter + spray stream formation) 75mm
  • Coating characteristics with the extension are in line with standard flame sprayed coating characteristics (adhesion, surface finish)
  • Available in 150mm, 300mm and 450mm lengths

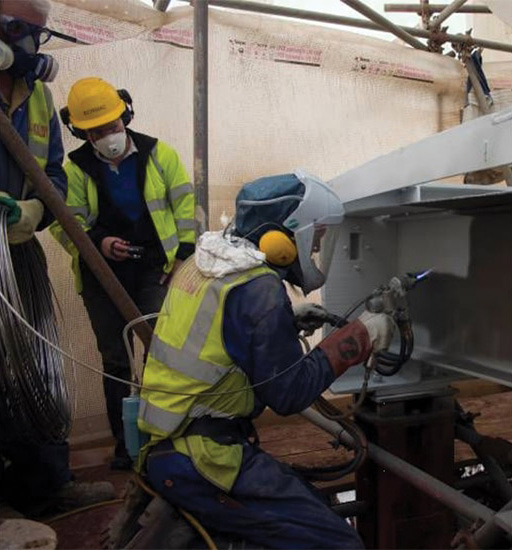

In this video you will see a demonstration of a Metallisation deflected flame spray extension on the MK73 flame spray pistol to spray hard to access areas with zinc. The areas include the chassis legs and engine mounts for a new RNLI Launch and Recovery System, manufactured by Supacat Ltd.

Being an Australian Distributor for Metallisation Flame Spray Systems, MSSA supply the full range of Metallisation equipment, including spray guns, flame spray extensions and other spare parts.

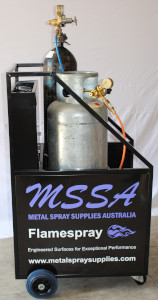

Flame/Powder Spray Equipment Trolleys

For the convenience and ease of moving your Flame/Powder Spray Equipment quickly from job to job, we supply purpose-built Flame/Powder Spray Equipment Trollleys, complete with gas cylinder storage, powder and tools storage with lockable doors.

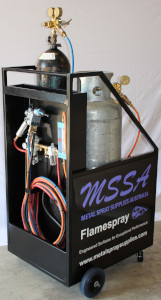

Note, the photos show the Flame Spray MK73-FS system installed in the trolley, please note our Trolley's can be loaded with any of our Flame/Powder Spray systems.

Equipment Trolley - Storage Features

  • Flamespray system storage including Spray Pistol, Flowmeters, Regulators, Flash Back Arrestors, Hoses, Air Manifold
  • Gas Cylinder Storage facility
  • Hose Storage Facility
  • Hard Rubber Wheels- no puncture worries!
  • Castors
  • Wire Storage Facility

If you would like more information on our equipment, please call us on 07 3823 1004, or email us using our contact form.
