The Hipo Jet 2700 HVOF (High Velocity Oxygen Fuel) Powder Spray System runs on low cost fuels such as Propane / LPG / Propylene / Natural Gas.  As liquid fuels are not used, the system does not require any fuel pumps. The result is low operating cost compared to other HVOF systems.

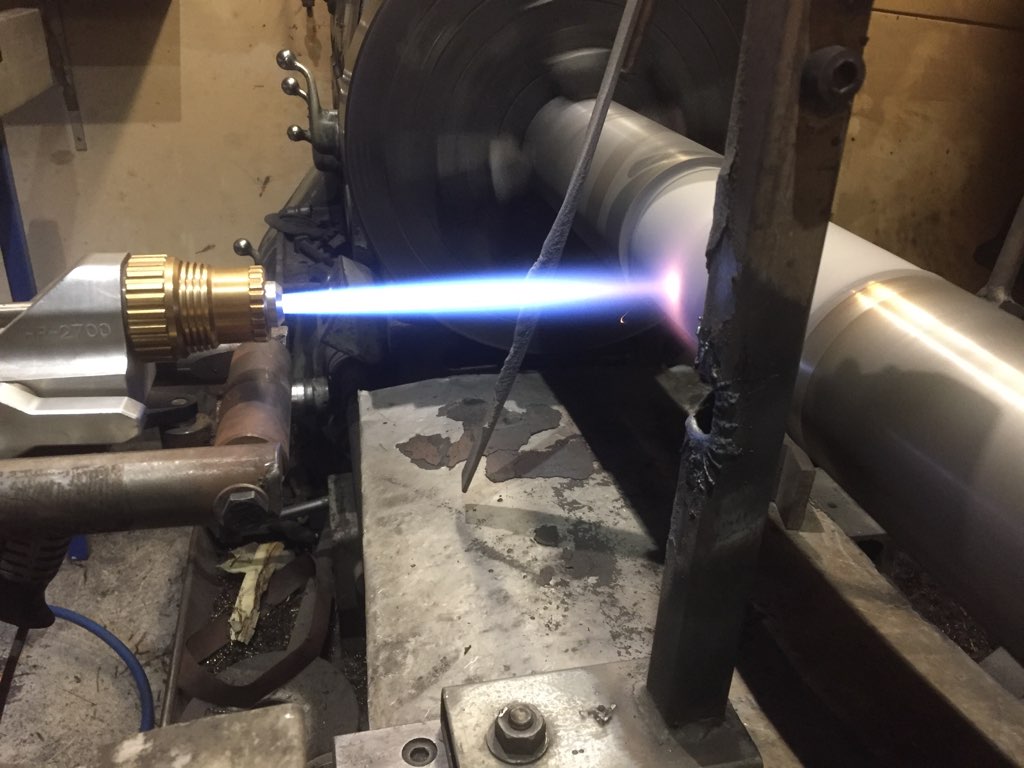

Our video shown here, demonstrates the Hipo Jet 2700 in operation, and also featuring the use of 'MSSA No Bond", to mask parts of the job to prevent overspray.

Being an Australian Distributor for Hipo Jet HVOF Metal Spray systems, MSSA supply the full range of equipment, including spray guns and spare parts.

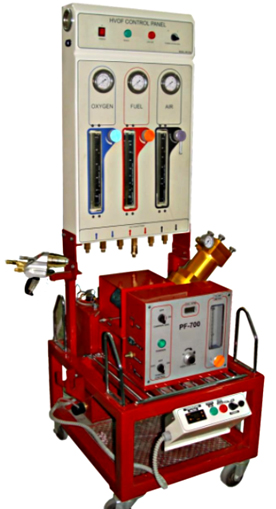

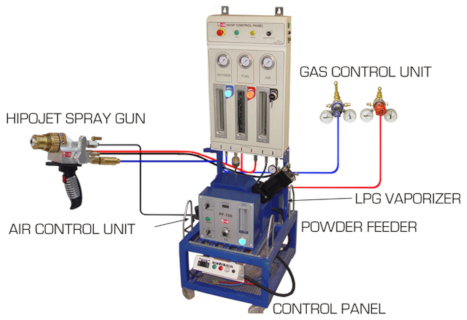

The HVOF powder spray gun control console comprises of oxygen & fuel flow meters with control valves powder feeder, Model: PF-700.  The Air Control Unit is comprised of an automatic drain air filter with regulator and secondary filter for oil.  The high-pressure hose unit is used with oxygen, propane and air.

Simple operation and low weight of the Hipo Jet 2700 HVOF Powder Spray system combined with the PF-700 Powder Feeder, makes this system ideal for onsite thermal spray work. There is only minimal additional training required for operators of combustion spray equipment.

Hipo Jet 2700 HVOF System - Features

  • Precision  components designed for reliable & repeatable coatings incorporating high safety standards
  • Compatible with both Air Cooled Hipo Jet 2700 Gun and high performance Water Cooled (Hybrid) Hipo Jet2700 Gun
  • Customisable parts to suit your ideal spray applications
  • User friendly system

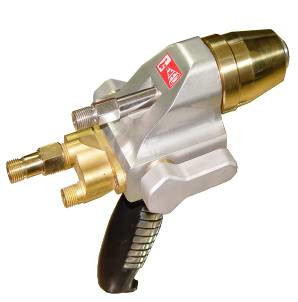

Hipo Jet 2700 HVOF - Gun Features

The Hipo Jet 2700 lightweight 1.85kg gun reduces operator fatigue and the powder feeding start switch is provided on the gun handle.

The gun offers simple operation:

  • No cooling water parameter to manipulate
  • No run or ramp parameters to  set
  • One simple lever for operation & ignition (as on the conventional flame spray equipment)

Hipo Jet 2700 HVOF - Typical Applications

  • Aerospace : Hard Surfacing; Hard Chrome replacement:
    Turbine engine fan blade, compressor blades, bearing journals, stator, rotor disk snap diameters, landing gears, actuators, flap tracks, helicopter rotor, rotor joints & sleeves
  • Power Generation : Hard Surfacing, Anti Corrosion:
    Industrial gas turbines, hydroelectric pelton buckets, nozzles and blades, exhaust fans
  • Automotive : Seff Lubricating, Hard Chrome replacement etc:
    Transmission shifter forks, hydraulic rods, pistons, piston rings, ship steering rams
  • Printing & Paper : Rebuilding, Hard Surfacing etc:
    Print roll covers, inking rolls, calendar & press roll covers
  • Petrochemical: Hard Surfacing, Anti Corrosion etc:
    Pump components, gate valves, ball valves, valve seats, exhaust stacks, sucker rods, hydraulic rods, conveyor screws
  • Textile Machinery :  Rebuilding,  Hard Surfacing etc:
    Thread guides, crimping rolls, draw roll
  • General Industry :  Rebuilding,  Wear Resistance etc:
    Pump housings, impellers and shafts, plastic extruders, cam followers, wear rings, machine bedways, press fits, restoration

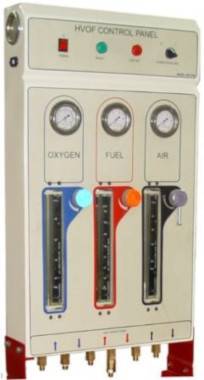

Hipo Jet 2700 HVOF - Control Console MP-2100

The Control Console model MP-2100 is the most important and heart of the HIPOJET powder spray system. It is a robust instrument designed for safe regulating and measuring the flow of oxygen, fuel gas and air to HIPOJET-2700 Spray Gun. Connected between the gas supply and the gun, it is the reliable indicator of gas flow and aid to highest coating quality.

Three pressure gauges are provided in this console, one each for oxygen (0 – 21 kg/cm2), fuel gas (LPG /Propane) (0 – 10 kg/cm2) and air (0-10 kg/cm2). The pressure can be preset through the gas regulators and air regulator fitted on gas cylinders and air control unit respectively. The control Panel also consists of three flow meters one each for oxygen, fuel gas and air to measure the flow of these gases in SLPM.

The flow can be adjusted with the help of needle valves provided. Input power supply to control panel is 220 V /1 P / 50 Hz (110V optional).

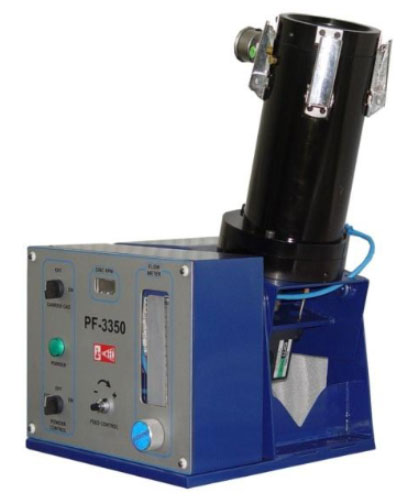

Hipo Jet 2700 HVOF - Powder Feeder PF-3350 / PF-700

The model PF-3350/PF-700 operates on a volumetric feed principle. Slots in the powder wheel at the base of the canister fill with powder. Rotation of the powder wheel forces the powder into the exit ports. An inert carrier gas transports the powder from the exit ports through the powder hose and to the thermal spray gun. The system is built to withstand the spray environment. Heater blanket temperature control with selectable increment is an optional.





If you would like more information on our equipment, or consumables please call us on 07 3823 1004, or email us using our contact form.
