The Deflected Arc Spray Extension nozzles are designed to get to those difficult to reach areas.

  • Available extension lengths are 150mm, 500mm, 1m and 1.5m.
  • Extensions are available for all current Metallisation Arc Spray systems.

Features

  • Suitable for internal bores minimum 75mm or recesses.
  • Variable deflected spray from 0 to 75°.
  • Available in lengths 150mm, 500mm, 1000mm & 1500mm.
  • 1.6mm, 2.0mm, 2.3mm and 2.5mm versions are available for Zinc, Zinc/Aluminium and Aluminium wires.
  • Engineering wires can only be sprayed with the 1.6mm extension.
  • Maximum amperage that the extension can be operated at is 300A.

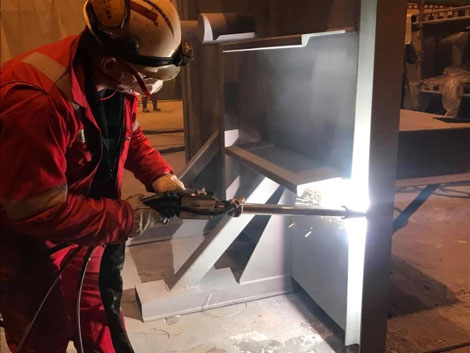

The above video shows the Arc Spray Deflected Extension spraying internal bores with a deflection angle up to 78°. The same extension is also used for manual spraying in difficult to access areas.

For more information on our equipment, please call us on 07 3823 1004, or email us using our contact form.
