Carbon Resistors/Brushes
Carbon and ceramic resistors and carbon brushes are sprayed with a thin film of copper to provide an electrical connection of high conductivity.
Thick film electrical circuits carry higher currents than the printed type and are produced by spraying the metal onto a non-conductive substrate usually plastic, glass or ceramic.
 |
 |

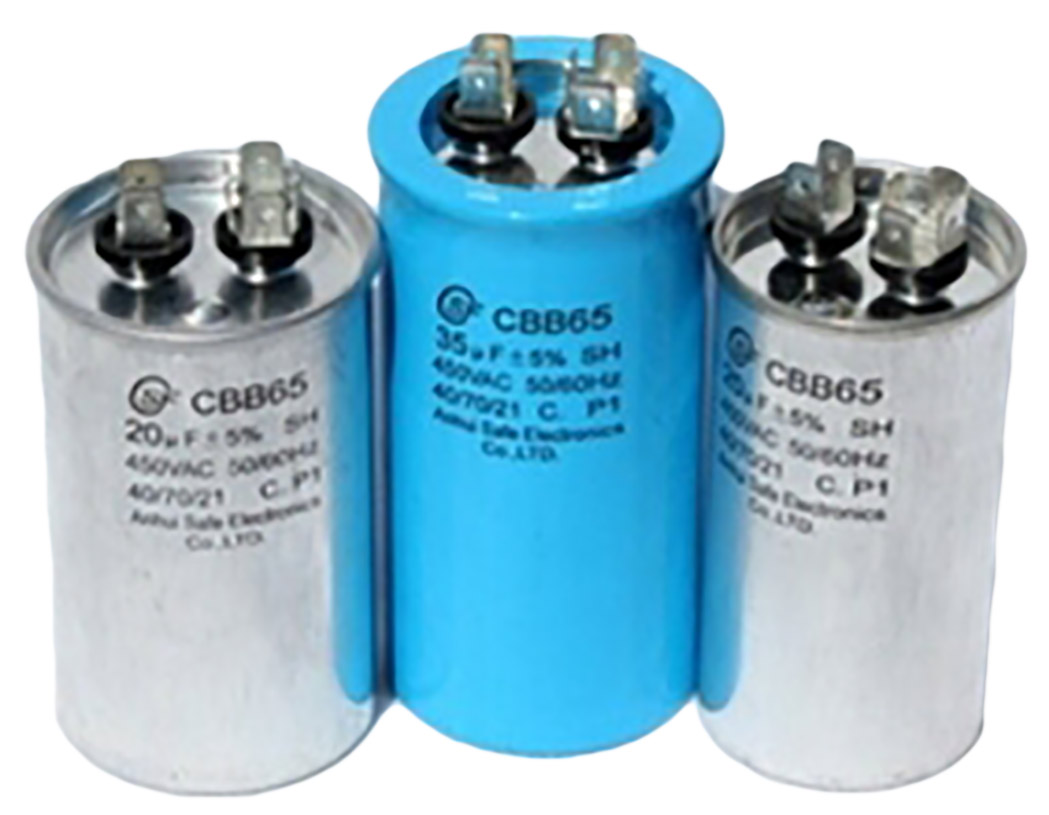

| Electrically conductive coating on a Dielectric substrate | Capacitors |
